What Is a Brinell Hardness Tester?

A Brinell Hardness Tester is a material testing instrument that determines the hardness of metals and alloys by pressing a hardened ball indenter into the material surface under a controlled load and measuring the size of the resulting indentation. The method is named after Swedish engineer Johan August Brinell, who introduced it in 1900 making it the oldest standardised hardness testing method still in widespread use.

The Brinell test’s defining characteristic is its large indentation area produced by using balls up to 10 mm in diameter under loads up to 3000 kgf (29.4 kN). This large indentation averages the hardness over a significant surface area, which is precisely why Brinell is the preferred method for:

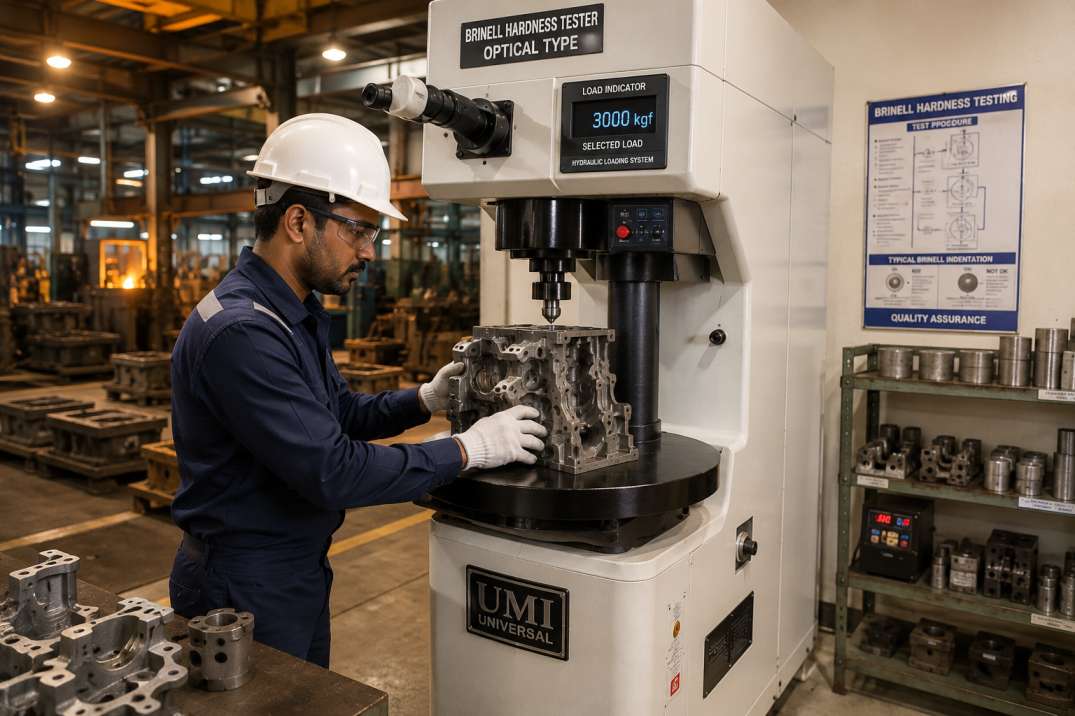

• Castings – where graphite flakes, porosity, and non-uniform microstructure mean a small indentation gives unreliable results
• Forgings and rolled stock – where surface scale and decarburisation layers need to be penetrated
• Large-grained materials – aluminium alloys, grey cast iron, ductile iron, where grain size exceeds a Vickers indentation
• Soft to medium-hard metals – HBW 8 to 650; beyond 650 HBW the ball deforms and results become inaccurate

2. Working Principle : How the Brinell Test Works

The working principle of a Brinell Hardness Tester is based on static indentation under controlled load. Here is the complete sequence:

Step 1 – Specimen Preparation

The specimen surface must be flat, smooth, and free of scale, oil, or surface coatings that would affect penetration. Surface roughness Ra ≤ 1.6 µm is recommended per IS 1500. The minimum specimen thickness must be at least 8× the expected indentation depth for steel at 3000 kgf this means minimum 8–10 mm thick specimen. Thin specimens can be backed by a hard flat plate.

Step 2 – Ball and Load Selection

Select the correct ball diameter (D) and test force (F) based on the material type and expected hardness range. See Section 4 for the complete selection guide this is the most critical step. An incorrect ball-load combination gives results outside the valid measurement range.

Step 3 – Specimen Placement and Contact

Place the specimen on the machine table. Raise the table using the hand wheel (manual machines) or motorised lift (hydraulic machines) until the specimen just contacts the ball holder assembly. The specimen must be stable no rocking or movement during loading.

Step 4 – Load Application and Dwell Time

Apply the selected test force smoothly and without shock. The load application time must be 2–8 seconds per IS 1500. Hold the load at full force for the dwell time: 10–15 seconds for ferrous metals and most alloys; 30 seconds for soft metals (aluminium, copper). On hydraulic Brinell machines, a timer controls dwell time automatically.

Step 5 – Load Removal and Indentation Measurement

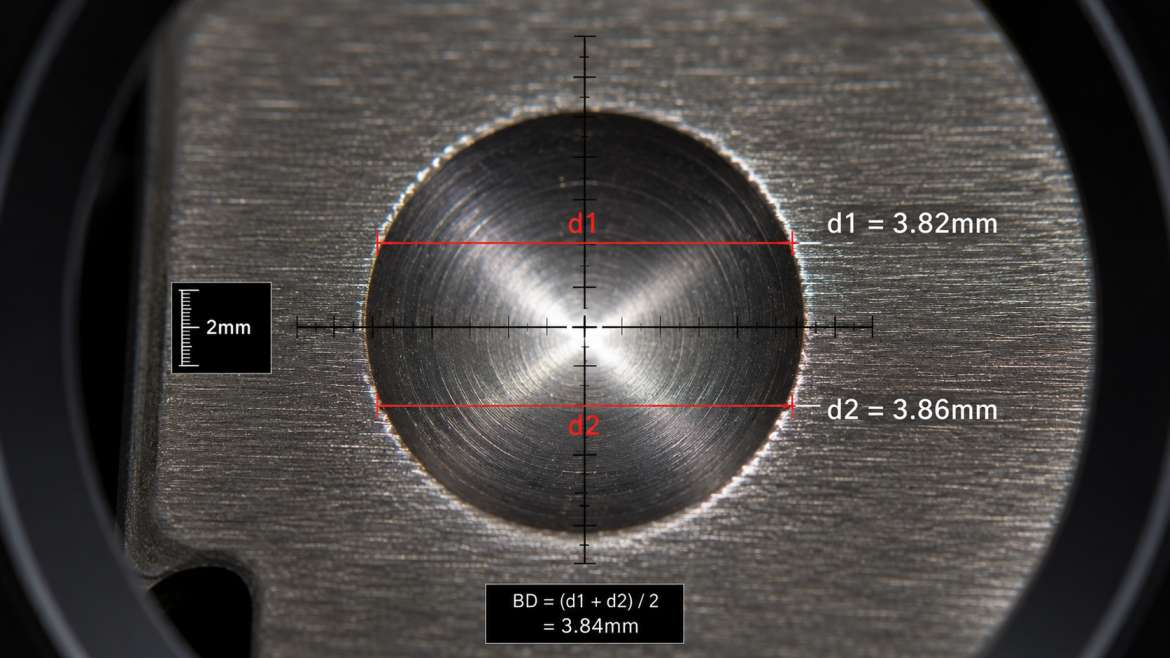

Remove the load smoothly. The ball indenter swivels away (on most machines) to allow optical measurement of the indentation. Measure the diameter of the circular indentation in two perpendicular directions (d1 and d2) using the optical measurement system. Use the average: d = (d1 + d2) / 2. Minimum measurement accuracy: 0.01 mm per IS 1500.

Step 6 – HBW Calculation

Calculate the Brinell Hardness Number using the formula in Section 3. On computerised Brinell testers, the image analysis software measures the indentation diameter automatically from a CCD camera image and calculates HBW instantly.

3. The Brinell Hardness Number (HBW) Formula & Worked Example

Worked Example – Casting Steel Test

4. Ball & Load Selection Guide – The Most Critical Brinell Decision

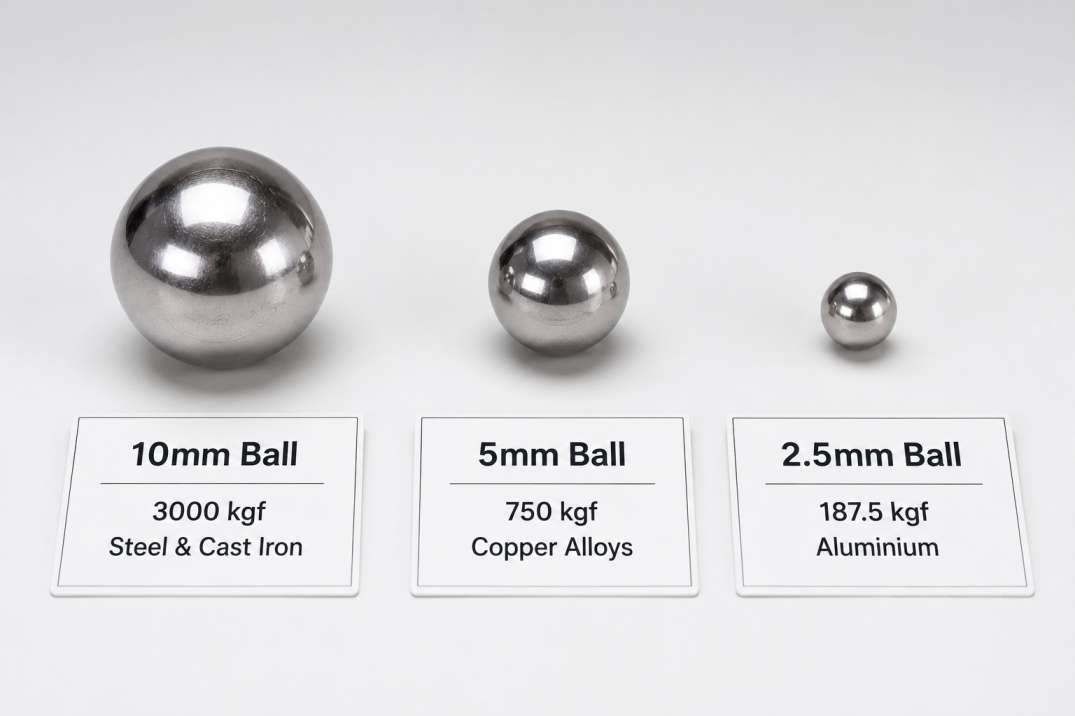

This is the section every engineer and lab technician searches for and no Indian competitor publishes. The ball diameter and load must maintain a constant load-to-ball-diameter-squared ratio (F/D²), known as the load factor, to ensure geometrically similar indentations across different test conditions. IS 1500, ISO 6506, and ASTM E10 specify three standard load factors: 30, 10, and 2.5.

5. IS 1500 Brinell Hardness Test Procedure Complete 10-Step Guide

IS 1500:2005 (Method for Brinell Hardness Test for Metallic Materials, Fourth Revision) is the Indian standard governing Brinell hardness testing. Here is the complete IS 1500 procedure the most comprehensive published guide for Indian labs:

6. HBW vs HBS – Why Tungsten Carbide Replaced Steel Ball

7. Types of Brinell Hardness Testers Available in India

7.1 Manual / Hydraulic Brinell Tester (Analogue)

The classic design. Hydraulic loading through hand-lever operation. Load indicated on Bourdon-tube pressure gauge. Optical measurement: ball impression projected via 14× optical device onto a glass screen with micrometer cross-wire for diameter measurement. Standard accessories: 10 mm and 5 mm ball holders, 200 mm flat testing table, Y-groove table, test blocks.

• Capacity: 500–3000 kgf (multiple stages in 250 kgf steps)
• Standards: IS 1500, ASTM E10, ISO 6506, BS 10003
• Price range India: ₹1,00,000 – ₹2,50,000
• Best for: foundries, forging shops, basic production QC, cost-sensitive buyers

7.2 Digital Brinell Hardness Tester

Motorised loading and unloading (no hand lever). Dwell timer is automatic. Optical measurement using CCD camera instead of eyepiece indentation image displayed on digital screen. Diameter measured by clicking on image edges calculation done automatically by microprocessor.

• Display: 7-inch colour touch screen or front panel controller
• Data output: USB, RS-232, statistical summary (mean, max, min, standard deviation)
• Price range India: ₹2,00,000 – ₹5,00,000
• Best for: QC labs doing medium-volume production testing, reduces operator skill requirement

7.3 Computerized Brinell Hardness Tester (PC-Based, Fully Automatic)

Full automation: motorised loading and unloading cycle starts with one press of ‘Cycle Start’. After load removal, indenter swivels and CCD camera captures the indentation image. PC software measures indentation diameter using advanced image analysis algorithm no operator measurement required. Generates test certificate with operator ID, date, specimen ID, HBW value, and indentation image.

• Software features: image capture, auto-diameter measurement, batch statistics, database storage, PDF/Excel reports
• Standards: IS 1500, IS 2281, ASTM E10, ISO 6506, BS 10003
• Price range India: ₹4,00,000 – ₹12,00,000
• Best for: NABL accredited labs, high-volume foundry QC, automotive supplier QC, ISO-certified factories

7.4 Bridge Type / Wormdrive Brinell Tester (WOM type)

Designed for very large and heavy specimens pressure vessel shells, heavy forgings, large castings up to 1500 kg that cannot be lifted onto a standard Brinell machine table. A bridge-type frame straddles the specimen. The Brinell head is mounted on the bridge and pressed down onto the specimen surface. Available with motorised or hydraulic loading.

• Test height: up to 900 mm; throat depth 400–600 mm; specimen weight up to 1500 kg
• Price range India: ₹6,00,000 – ₹18,00,000
• Best for: heavy industry boiler shells, pressure vessels, ship plates, bridge girders, heavy castings

8. Key Components of a Brinell Hardness Tester

9. Brinell vs Vickers vs Rockwell – When to Choose Brinell

For a complete comparison of all three methods including hardness conversion tables, see our guide: Vickers vs Brinell vs Rockwell Hardness Tester Complete Comparison Guide.

10. HBW to HRC and HV Hardness Conversion Table

This conversion table is for steel only  based on ISO 18265 and ASTM E140. Conversions between hardness scales are approximate and material-dependent. Never use these values for aluminium, copper, or cast iron.

Important: These conversions apply to steel only. For aluminium, copper alloys, grey iron, or ductile iron use material-specific conversion tables from ISO 18265 or ASTM E140 Appendix.

11. Industry Applications – Who Uses Brinell Hardness Testers in India?

12. Competitor Analysis – Brinell Hardness Tester Market India 2026

Research conducted July 2026. This analysis reveals the significant content gap in the Indian Brinell hardness tester market that UMI Universal’s blog is uniquely positioned to fill.

13. Brinell Hardness Tester Price in India (2026)

Note: All prices are indicative and subject to 18% GST, accessories (test blocks, ball holders, tables), calibration certificate, and freight. Contact UMI Universal at +91-2025204168 for exact pricing.

14. How to Choose the Right Brinell Hardness Tester for Your Lab

Step 1 – Identify Your Materials and Expected HBW Range

Start with the hardest and softest materials you will test. Grey iron foundry: expect 130–300 HBW. Aluminium casting: 50–130 HBW. Structural steel: 100–220 HBW. If your material exceeds 450 HBW (hardened tool steel, high-speed steel), consider Vickers Brinell ball deforms above this level.

Step 2 – Choose the Right Load & Ball Combination

Reference Section 4 of this guide. Hard steel/iron → 10mm ball, 3000 kgf. Aluminium alloys → 10mm ball, 500 kgf. Soft metals → 10mm ball, 250 kgf. If you test multiple material types, ensure your machine supports multiple load settings (most standard Brinell machines in India offer 500–3000 kgf in 250 kgf steps).

Step 3 – Select the Right Test Volume & Automation Level

< 20 tests/day: manual optical machine sufficient. 20–100 tests/day: digital with CCD camera. > 100 tests/day or NABL accredited lab: fully automatic computerized. Automation eliminates operator measurement error (the biggest source of Brinell variability) and produces traceable digital records.

Step 4 – Consider Specimen Size and Weight

Standard machines handle specimens up to 380–410 mm height and 200–300 mm table diameter. For large castings (engine blocks, gearboxes) or heavy forgings: specify a deep-throat or WOM-type machine. For very large installed components not moveable to a machine: consider a portable hardness tester as a supplement.

Step 5 – Verify IS 1500 and IS 2281 Compliance

Confirm the machine is manufactured and tested per IS 2281 (Verification of Brinell Hardness Testing Machines). Ask for: (a) NABL-traceable calibration certificate on delivery, (b) certified Brinell hardness reference test blocks (HB 5/750 and HB 10/3000 scales), and (c) ball diameter certificate. For NABL accreditation, annual recalibration by a NABL-accredited calibration lab is mandatory.

Step 6 – Evaluate After-Sales Support in India

Brinell testers require: annual calibration, periodic ball replacement, optical cleaning (for manual machines), and occasional hydraulic seal servicing. UMI Universal is headquartered in Pimpri-Chinchwad, Pune, with service engineers available across Maharashtra and pan-India installation capability. Contact us for a free technical consultation and quotation.

15. Frequently Asked Questions – Brinell Hardness Tester

Structured for FAQPage schema and Google AI Overview extraction.

Q: What is the difference between HBW and HB?

A: HB (Brinell Hardness) was the original designation. It has now been replaced by two specific designations: HBW (Brinell Hardness with Tungsten Carbide ball the current standard) and the deprecated HBS (Brinell Hardness with hardened Steel ball). ASTM E10 officially replaced HBS with HBW in 2010, and ISO 6506 made the same change. In current Indian standards (IS 1500:2005), HBW is the correct designation. When you see older drawings, purchase orders, or material certificates showing ‘HB 200’ or ‘HBS 200’, interpret this as 200 HBW for all practical purposes. All modern Brinell testers in India, including UMI Universal machines, use tungsten carbide ball indenters and report results as HBW.

Q: What is the correct ball and load combination for testing grey cast iron per IS 210?

A: For grey cast iron (IS 210 grades FG 150 to FG 400), the correct Brinell test combination per IS 1500 and IS 210 is: Ball diameter = 10 mm, Load = 3000 kgf (load factor F/D² = 30). Dwell time = 15 seconds. This is the standard HBW 10/3000 combination. The expected indentation diameter for FG 200 (approximately 180 HBW) is around 3.7–3.9 mm well within the valid 24–60% range of the 10 mm ball. Use this as a check: if your indentation diameter falls outside 2.4–6.0 mm, the test conditions are wrong for the material.

Q: Why does my Brinell hardness test give different results for the same material?

A: Variation in Brinell results typically has four main causes: (1) Testing too close to the specimen edge or a previous indentation maintain ≥ 2.5×d from edge and ≥ 3×d between indentations. (2) Surface preparation scale, decarburised layer, or rough surface on the test zone gives a misleadingly high or variable HBW reading. Grind a flat, clean area before testing. (3) Indentation measurement error measure d1 and d2 carefully; if they differ by > 2%, the indentation is irregular and should be rejected. (4) Machine not calibrated daily verification with certified test blocks catches machine drift. UMI Universal machines are designed for stable, repeatable loading and come with calibrated test blocks.

Q: Can a Brinell hardness tester be used on aluminium castings?

A: Yes – Brinell is actually the preferred method for aluminium alloys and aluminium castings (IS 617, ASTM B85). The correct combination is: 10 mm ball, 500 kgf, 30 seconds dwell time (F/D² = 5). This lighter load prevents excessive indentation while still averaging the coarse cast microstructure of aluminium. For wrought aluminium alloys: 10 mm ball, 250 kgf, 30 seconds (F/D² = 2.5). Rockwell HRB is also applicable to aluminium, but Brinell gives a larger, more statistically representative measurement especially important in sand castings where porosity and segregation are present.

Q: What is the maximum hardness that can be tested with a Brinell machine?

A: The upper limit for reliable Brinell testing is 650 HBW. Above this level, even tungsten carbide ball indenters begin to deform under the applied load, causing the indentation to be larger than it should be resulting in an underestimate of the true hardness. Materials harder than 650 HBW (hardened high-carbon steel, tool steel, cemented carbides) should be tested using Vickers (HV) or Rockwell C (HRC) methods. ASTM E10 and ISO 6506 both limit the valid Brinell range to ≤ 650 HBW. For comparison: the maximum on standard Rockwell C scale is 70 HRC (≈ 900 HV), and Vickers has no upper limit (diamond indenter does not deform).

Q: How often should a Brinell hardness tester be calibrated in India?

A: For most production and QC labs: daily verification using certified Brinell hardness reference blocks (test blocks with known HBW values traceable to national standards) is recommended at the start of each shift. Formal calibration (machine verification per IS 2281 or ISO 6506-3) should be performed annually, or after any repair, overload, relocation, or suspected damage. For NABL-accredited testing laboratories: annual calibration by a NABL-accredited calibration laboratory is mandatory, and the calibration certificate must be traceable to BIS/NPL (National Physical Laboratory of India) or international equivalents. UMI Universal can facilitate calibration arrangements for machines we supply.

Q: What accessories are included with a Brinell hardness tester?

A: A standard Brinell hardness tester from UMI Universal is supplied with: 10 mm tungsten carbide ball holder (1 pc), 5 mm tungsten carbide ball holder (1 pc), flat testing table 200 mm (1 pc), Y-groove testing table for round specimens 70 mm (1 pc), certified Brinell hardness reference block HB 5/750 (1 pc), certified Brinell hardness reference block HB 10/3000 (1 pc), Allen spanners (4 pcs), instruction manual (1 book). Optional accessories: 2.5 mm ball holder, additional test blocks at different HBW levels, tungsten carbide replacement balls (pack of 10), and deep-throat extension table for large specimens. Contact our sales team to confirm the exact accessory set for your model.

Q: Can a Brinell tester test very large components like engine blocks or pressure vessel shells?

A: Yes, but the machine configuration must match the specimen size. Standard Brinell machines (table height 380–410 mm, throat depth 200 mm) can test components that fit within these dimensions most machined castings, forgings, and plate sections up to 200 mm wide. For very large components (engine blocks, gearbox housings, large pressure vessel sections), a deep-throat or WOM-type Brinell machine with 400–900 mm test height and 400–600 mm throat depth is required. For installed components that cannot be moved to a machine at all (pressure vessel shells, bridge girders, crane booms), a portable Leeb hardness tester is the only practical option. UMI Universal supplies both deep-throat Brinell machines and portable hardness testers contact us to discuss your specific application.

Conclusion : Choosing the Right Brinell Hardness Tester

The Brinell Hardness Tester remains the most important hardness testing instrument for India’s foundry, casting, forging, and heavy steel industries because its large indentation provides the only reliable hardness measurement on coarse-grained materials where Vickers and Rockwell give misleadingly variable results.

The five most important points from this guide:

• Ball and load selection is the most critical decision always match the load factor (F/D²) to your material type
• Valid indentation range must be 24–60% of ball diameter outside this range, the result is invalid
• Use HBW notation – HBS and plain HB are deprecated; all modern machines and standards use HBW
• Daily verification with certified test blocks is non-negotiable for quality-critical testing
• Brinell limit is 650 HBW switch to Vickers for harder materials
